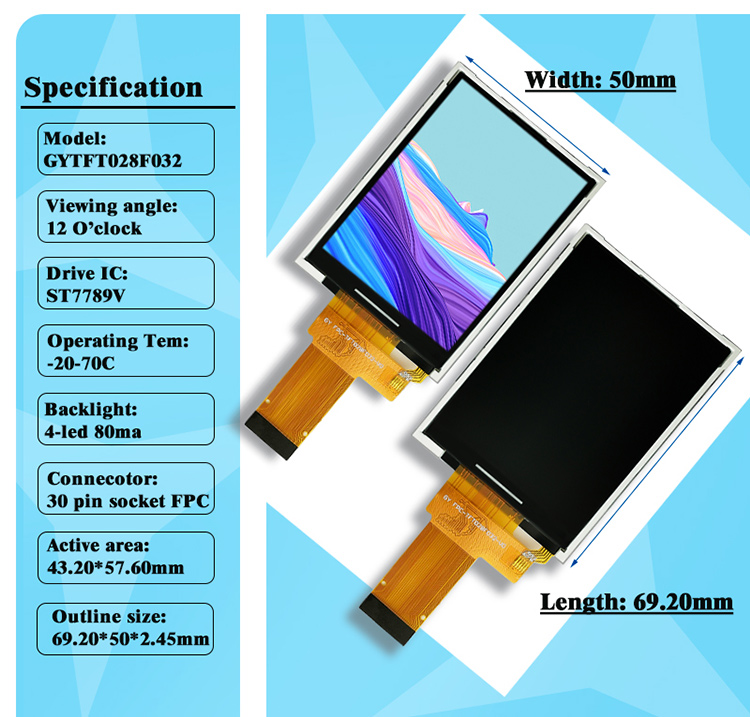

Basic Parameters:
| NO. |
ITEM |
SPECIFICATIONS |
| 1 |
Product Name |
2.8 Inch TFT LCD |
| 2 |
LCD Type |
Normally White |
| 3 |
Viewing Angle |
12 O'clock |
| 4 |
Resolution |
240x320 dots
|
| 5 |
Operating Temperature |
-20~+70℃ |
| 6 |
Storage Temperature |
-30~+80℃ |
| 7 |
FPC Connector |
30PIN, socket type |
| 8 |
Driver IC(COG) |
ST7789V |
| 9 |
Interface |
16-bit Parallel |
| 10 |
Backlight Type |
4-LED, White, 80mA
|
| 11 |
Outline Dimension |
50.00(H)* 69.20(V)* 2.45(D) mm
|
| 12 |
Active Area |
43.2(H)* 57.6(V) mm
|
TFT Screens ( 0.96 inch~10.1 inch ):
We mainly develop TFT LCD screens of small-middle sizes, including 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.
Also, we can customize the FPC, Interface, Touch Panel, Cover Glass, and Backlight based on your demands.
Please let me know your requirements, we will suggest some models for your optional.

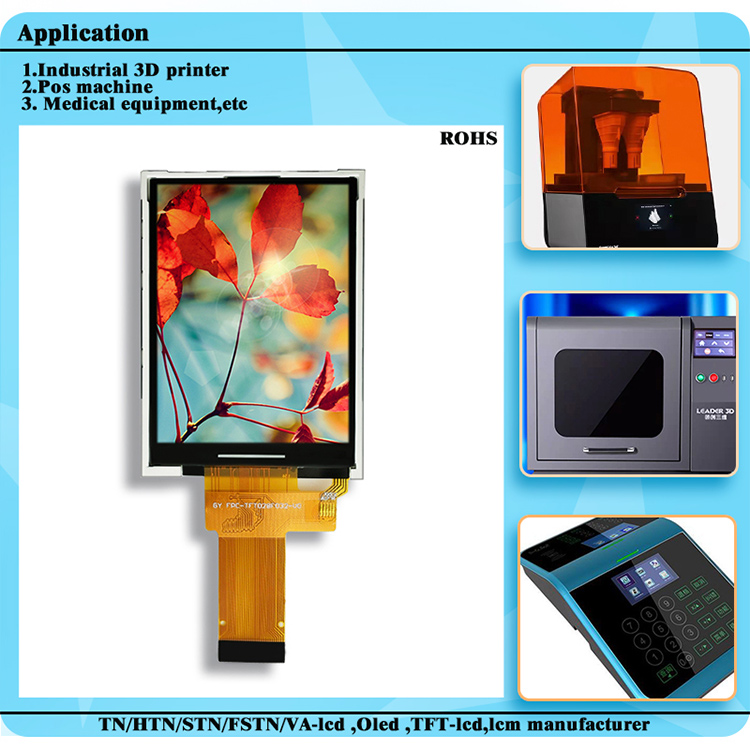

Common Applications:
- Embedded Systems: Displaying real-time data, graphics, and user interfaces.
- Microcontroller Projects: Frequently used with Arduino, ESP32, or Raspberry Pi for applications like handheld displays, digital clocks, small game consoles, or control panels.
- Industrial Applications: Often used in custom controllers, automation systems, or instrumentation requiring a small but high-quality display.
- DIY Electronics: Common in hobbyist projects for making devices like digital meters, sensors, or status monitors.
FAQ
1. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
